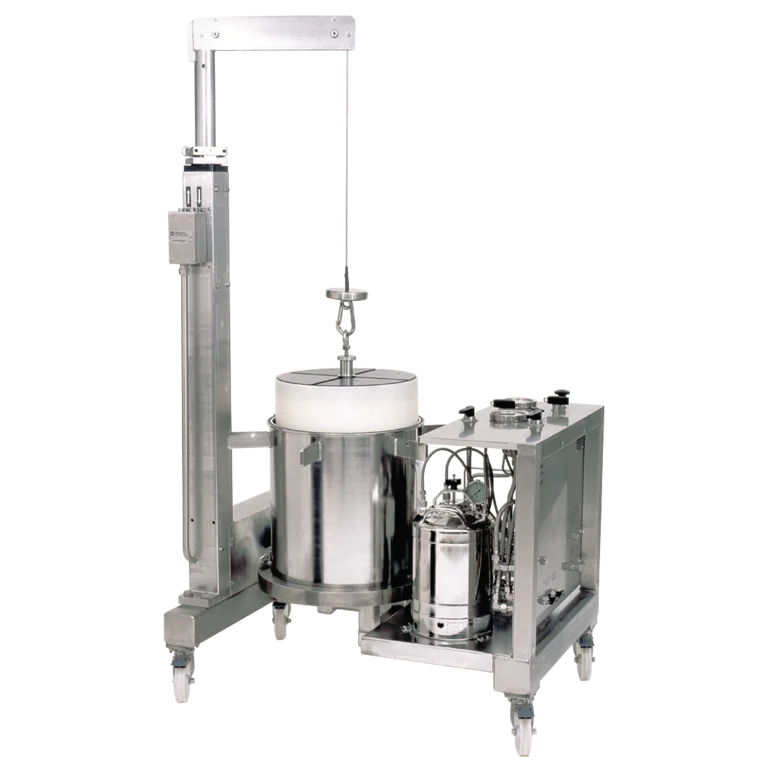

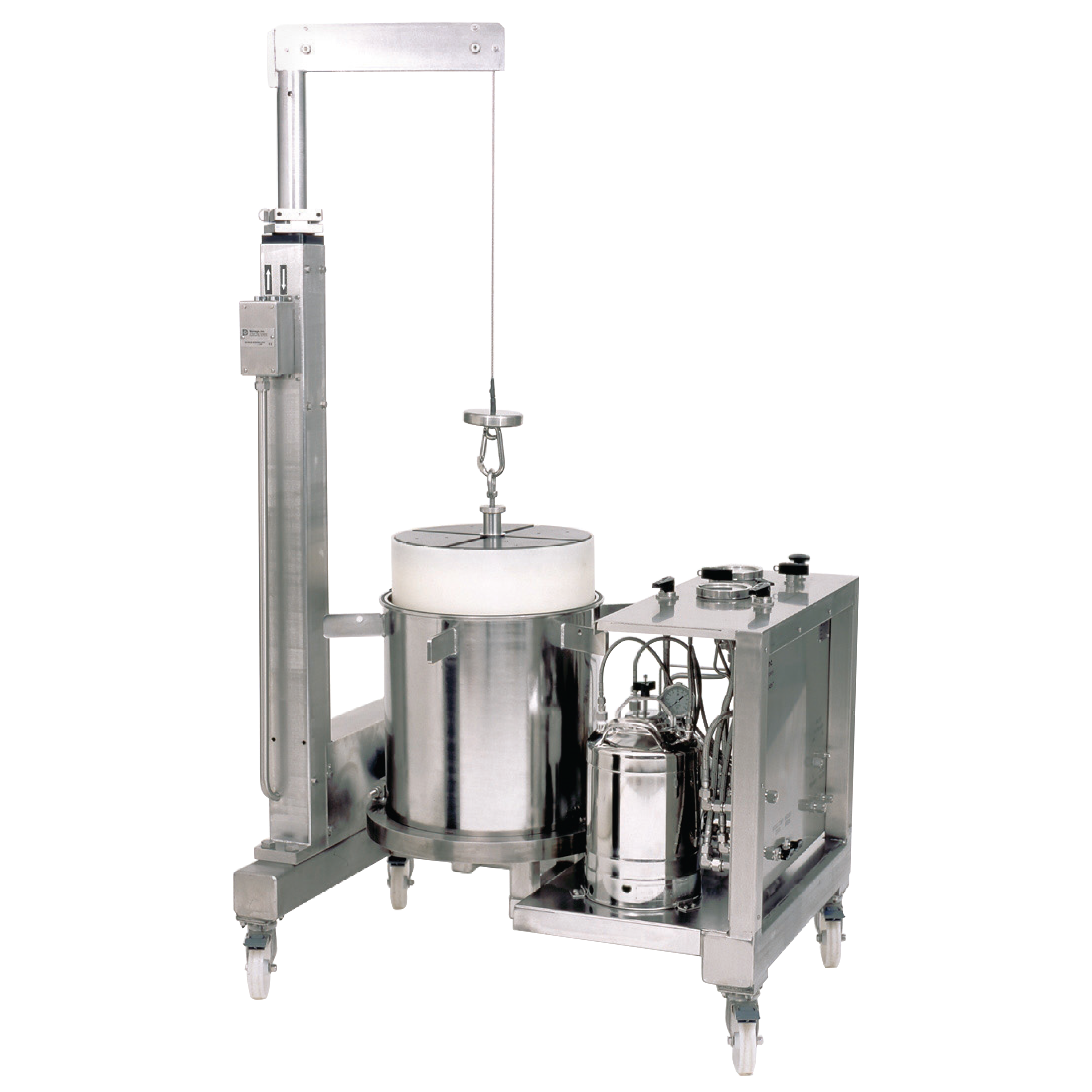

Biotage® Flash 400
Biotage® Flash 400
Flash chromatography system for larger scale manufacturing。From routine normal phase flash chromatography to more difficult separations with reversed phase silica, activated c
广西科米瑞实验仪器设备有限公司生产销售 Biotage Biotage® Flash 400，可提供产品参数、报价和售后服务咨询，价格面议。
← 返回产品列表
Flash chromatography system for larger scale manufacturing
From routine normal phase flash chromatography to more difficult separations with reversed phase silica, activated carbon, low metal/acid washed silica, Mitsubishi Diaion™ HP20SS resins, ion exchange or other custom packed, client supplied media, Biotage® Flash 400 systems are capable of addressing
Flow rate range (pressure controlled, up to 6 L/min) 2-5 L/min recommended
Certifications CE, ATEX, ASME
Radial compression pressure 80-100 psig (552-689 KPa)
Weight 455 kg (1000 lbs) typical, depending on configuration
Dimensions (LxWxH) With hoist retracted: 115 cm x 78 cm x 175cm, (LxWxH) (Hoist Extended): 115 cm x 78 cm x 241cm
Inlet pressure range 100 psi (6.9 bar)
Solvent delivery Via pneumatic solvent pump 100 psig (6.9 bar maximum)
Power requirement N/A - inert gas driven (fully grounded) system
