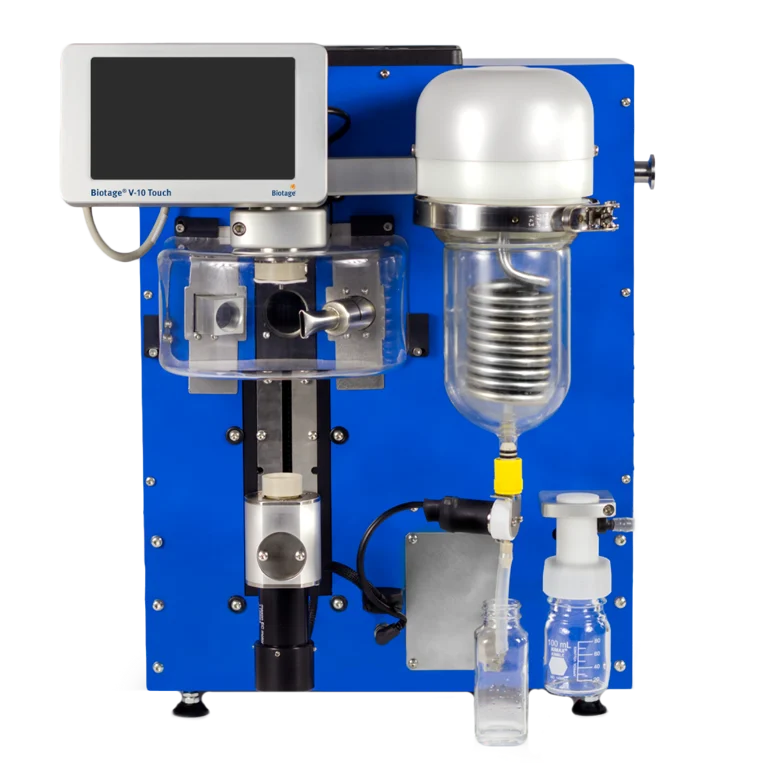

Biotage® V-10 Touch

Fast and gentle evaporation system

Automated evaporation system designed for gentle removal of aqueous and organic solvents.

Biotage® V-10 Touch rapidly dries samples from both aqueous and organic solvents, including HPLC fractions and high boiling solvents like NMP and DMF. It eliminates the need for liquid-liquid-extractions and offers unrestricted solvent choice, improving synthesis efficiency while simplifying workflo

The Biotage® V-10 touch rotates samples up to 8,000 rpm with precise heat and vacuum control for ultra-fast evaporation without bumping or contamination. By connecting an external vacuum pump to the system, also high-boiling solvents can be evaporated in minutes.

The system interface provides precise, real-time control of temperature and pressure. Built-in methods simplify evaporation of common solvents, while flexible programming adapts to specific needs.

Biotage® V-10 Touch quickly removes high boiling solvents, enabling their flexible use in reactions. The system supports higher concentrations and temperatures with reduced solvent volumes. Its internal condenser captures evaporated solvents, preventing emissions in the lab.

Connecting Biotage® V-10 Touch to a liquid handler with support from a solvent management module allows sequential evaporation of sample racks into one or multiple vials with the carousel option, supporting tasks like automated HPLC fraction removal. For advanced integration or remote control, a sep

Solvent compatibility Boiling points from 30 °C to 160 °C (up to 205 °C with an external vacuum pump). The system is not suitable for solutions containing HCl at any concentration.

Boiling points from 30 °C to 160 °C (up to 205 °C with an external vacuum pump). The system is not suitable for solutions containing HCl at any concentration.

Solvent reclamation Up to 98% of solvent vapours under typical conditions
