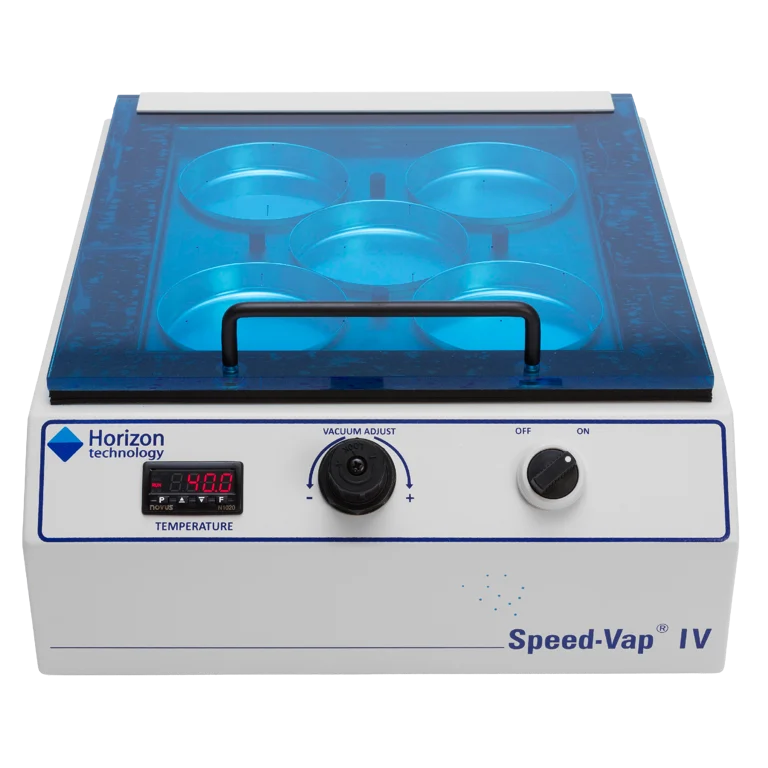

Biotage Speed-Vap®

Automated solvent evaporation system

A vortex airflow combined with precise temperature control enables the Speed-Vap® system to quickly and safely evaporate n-hexane solvent from oil and grease extractions.

The low-temperature heating system assures consistent heating of all samples to prevent the loss of volatile analytes. The gentle airflow created by the application of vacuum accelerates the evaporation of solvent from all of the samples.

Evacuating the solvent vapors via vacuum allows for the use of the optional in-line Biotage® Solvent Recovery OG to trap harmful vapors. The system is capable of recollecting approximately 70% of the evaporated solvent when run at room temperature for easy recycling or waste disposal.

Dimensions (W X D X H) 406 x 508 x 152 mm (16" x 20" x 6"). The height with the lid open is 483 mm (19")

406 x 508 x 152 mm (16" x 20" x 6"). The height with the lid open is 483 mm (19")

Power supply 100 to 240 V, 50/60 Hz

Maximum power consumed 350 W

Fuses 250 V, 5 A, GDC. One in the 120 V model and two in the 220 V model

250 V, 5 A, GDC. One in the 120 V model and two in the 220 V model
