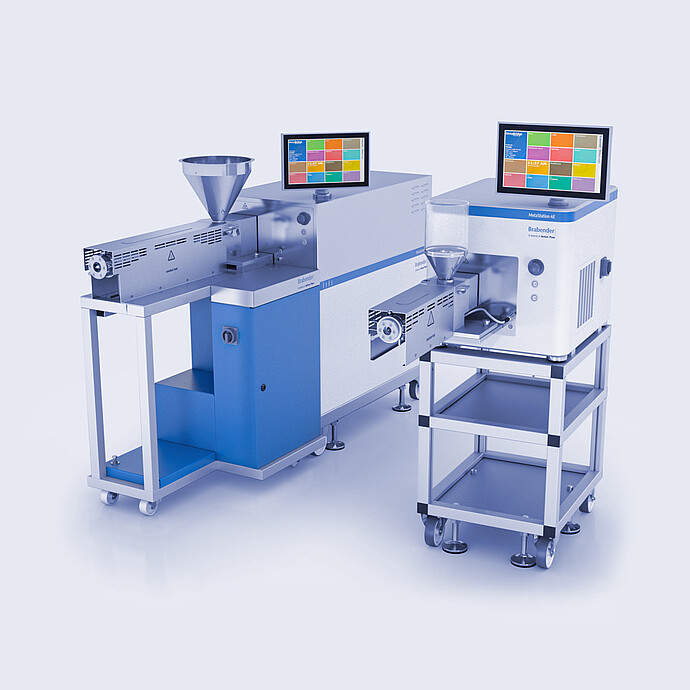

Anton Paar Brabender Modular Torque Rheometer: Brabender MetaStation
Modular Torque Rheometer: Brabender MetaStation
Modular Torque Rheometer: Brabender MetaStation。Drive for small mixers, single- and twin-screw extruders
广西科米瑞实验仪器设备有限公司提供 Anton Paar Brabender Modular Torque Rheometer: Brabender MetaStation 产品资料、选型咨询、供货报价和售后服务支持，价格面议。
← 返回产品列表
说明
Modular Torque Rheometer: Brabender MetaStation
Drive for small mixers, single- and twin-screw extruders
Application as table-top device possible due to compact design
Speed control: 0.2 min -1 to 185 min -1 with 200 Nm max. torque
Smart drive and control unit to gain deep process knowledge
MetaBridge for analyzing time-dependent process variables
Drive for mixers and for medium sized lab-scale extruders
规格
| 型号/名称 | Modular Torque Rheometer: Brabender MetaStation |
|---|---|
| MetaStation 4 | MetaStation 8 |
| Drive output | 4.2 kW |
| Torque and speed | 200 Nm, 0.2 min -1 to 185 min -1 |
| Speed deviation | 0.2 % through digital feedback |
| Integrated temperature control | 6 zones (integrated in the drive unit) |
| Connectivity | - MetaBridge Connect - WebAPI - Labfolder (LIMS) |
| Safety devices | - Emergency motor stop button - Non-contact magnetic safety switch on the cover of the measuring system |
| Power supply: | 3 × 400 V 50/60 Hz + N + PE, 32 A optional: 3 × 220 V 50/60 Hz + PE, 32 A without transformer |
| Dimensions (W x H x D) | 700 mm x 870 mm x 950 mm |
| Weight (net) | 154 kg |
